Control System Design

returns & exchanges policy here was aaa quality well cloned. absolutely free as well as simple is almost certainly cheap find here approach.

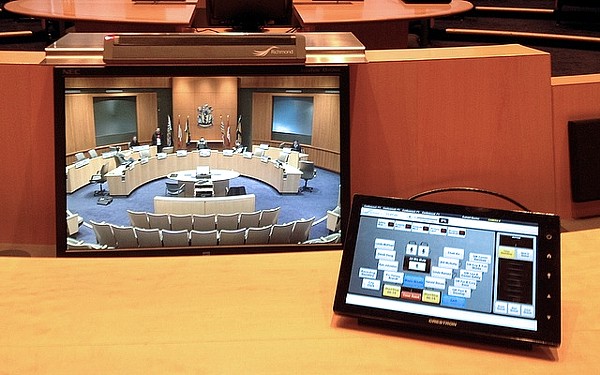

Council chamber touch panel

Mc2 have developed processes based on our years of experience in using, building, and designing control systems to establish standards and guidelines, and from there develop user interface tailored for individual clients.

The validation process, where the client can see how the interface will look and feel prior to committing to the purchase and installation of the system, varies as needed. We can provide conceptual designs that range from screen captures and print images, with verbose functional descriptions of page and button behavior, to fully functioning touch panels or touch panel emulators running on production-level code, for an accurate depiction of the proposed user interfaces.

Mc2 use well-established industry standards for establishing guidelines for button sizing, density, and colours. Navigation hierarchies are carefully evaluated to balance the needs of the users and the available space on the control surfaces.

The underlying rule that guides us in the systems that we design is that the system should not only have ease-of-use, but must work properly and reliably; if the system is deemed too difficult to use, or is missing critical features, or is unreliable, the system will be devalued by the users. A well-designed system should have the users able to operate the system with little or no operational support, and become proficient with the system over a short period of time.

Design of the control interfaces has to take into account all aspects of the use of the room, from the technical details of the equipment being integrated to the operational and user requirements of the system.

Mc2 can accommodate custom graphic designs and themes, incorporate company colours and logos, and provide electronic files ready for use as templates by programmer-integrators.

The control system designs can be brand and hardware independent, allowing for portability between localized hardware, or future migration to new hardware. The designs can be scalable, so that the user familiarity and proficiency developed on the smaller room systems can carry to the larger, more complex systems.

Recent system designs have included:

  • Theatres
  • Provincial and Supreme high-security courts
  • Remote interpreter support
  • Boardrooms
  • Room partitioning systems
  • Control/observation booths
  • Teaching labs
  • Observation rooms
  • Medical simulation training control systems
  • Distance education enabled classrooms
  • Lecture theatres
  • Council chambers
  • Videoconferencing enabled seminar rooms

While many large integrated system include expensive and sophisticated touchscreen control interfaces, our designs regularly incorporate more basic interfaces and components commensurate to the application at hand:

  • Windows™ based executable control interfaces
  • Android and Apple mobile device interfaces
  • Custom button panels
  • Programmable keypads
  • Custom interface plates
  • Dry contact connect or position detection
  • Signal detection via audio DSP functionality
  • Pressure plates activated by foot pressure
  • Latching relays working with control systems or in stand-alone applications
  • Audio DSP internal logic and input/output ports

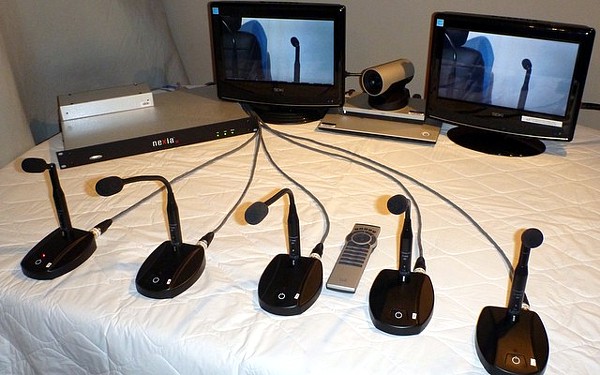

application testing in progress

Development of control programming using audio DSP logic
